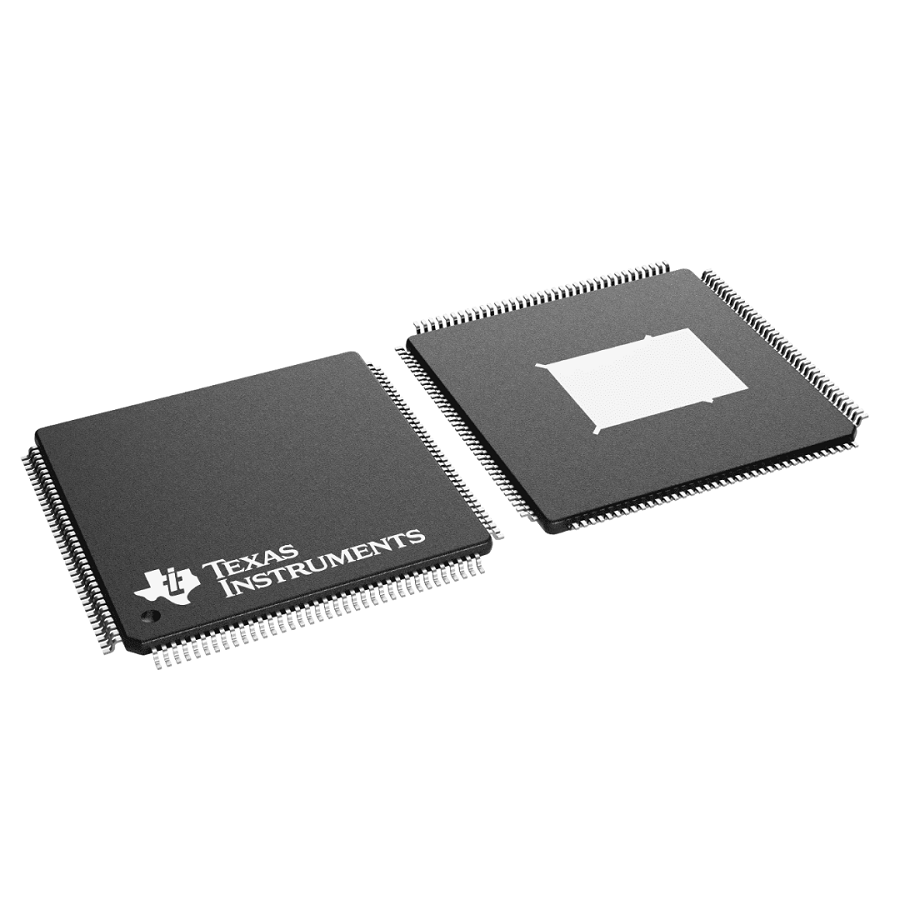

F28M35H52C1RFPT
Manufacturer:
Texas Instruments
Mfr.Part #:
F28M35H52C1RFPT
Datasheet:
Description:
Microcontrollers TQFP-144 SMD/SMT 32 bit 1 Mb FLASH
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 20 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 144 |
| Height | 1.2 mm |
| Thickness | 1 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 150 MHz |
| Core Architecture(core/core processor) | ARM |
| Interface | CAN, Ethernet, I²C, SCI, SPI, UART, USB |
| Memory Size | 1 Mb |
| Memory Type | FLASH |
| Number of I/Os | 64 |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Lifecycle Status | Active |
| Max Supply Voltage | 3.63 V |
| Min Supply Voltage | 1.14 V |
| Ambient Temperature Range High | 125 °C |
| Number of ADC Channels | 20 |
| Max Frequency | 100 MHz |
| RAM Size | 136 kB |
| Data Bus Width | 32 bit |
| Number of PWM Channels | 9 |
| Number of Programmable I/O | 64 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 7 |
| Max Junction Temperature (Tj) | 105 °C |
| Number of A/D Converters | 2 |
| Number of I2C Channels | 3 |
| Number of UART Channels | 6 |
| Number of GPIO | 64 |
| Number of Ethernet Channels | 1 |
| Number of USB Channels | 1 |
| Operating Supply Voltage | 1.2 V |
| RoHS | Compliant |
| Packaging | Tray |
| ADC Resolution | 12 bit |
| Max Clock Frequency | 100 MHz, 150 MHz |
Stock: 47
Distributors
pcbx
pcbxUnit Price$20.42006
Ext.Price$20.42006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $20.42006 | $20.42006 |
| 10 | $19.41149 | $194.11490 |
| 25 | $18.31826 | $457.95650 |
| 50 | $17.28660 | $864.33000 |
| 100 | $16.31298 | $1631.29800 |
